ErgoDonk Zero Cases

  • @todo - This has been rewritten to adapt from Sofle, but needs images updated.

Acrylic ErgoDonk Zero case Acrylic ErgoDonk Zero case

  • Key plates are strongly recommended, but not technically required. If you use 3 pin MX keys, the thumb keys tend to fall out if you don’t use a key plate.
  • Plates can be made from acrylic, or 3d printed.

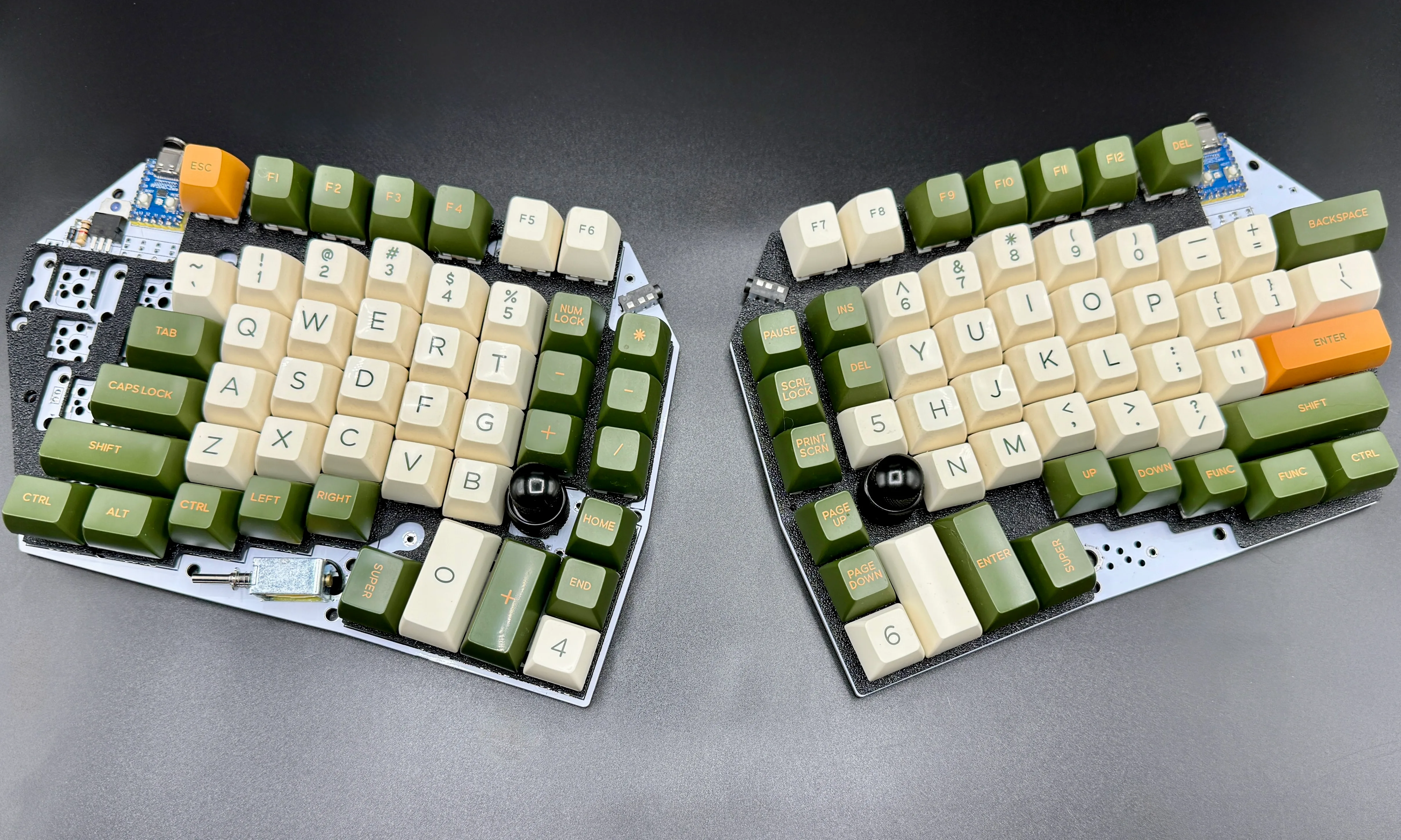

  • The 3d printed or acrylic key plates combined with a backplate make a nice ‘sandwich’ case.

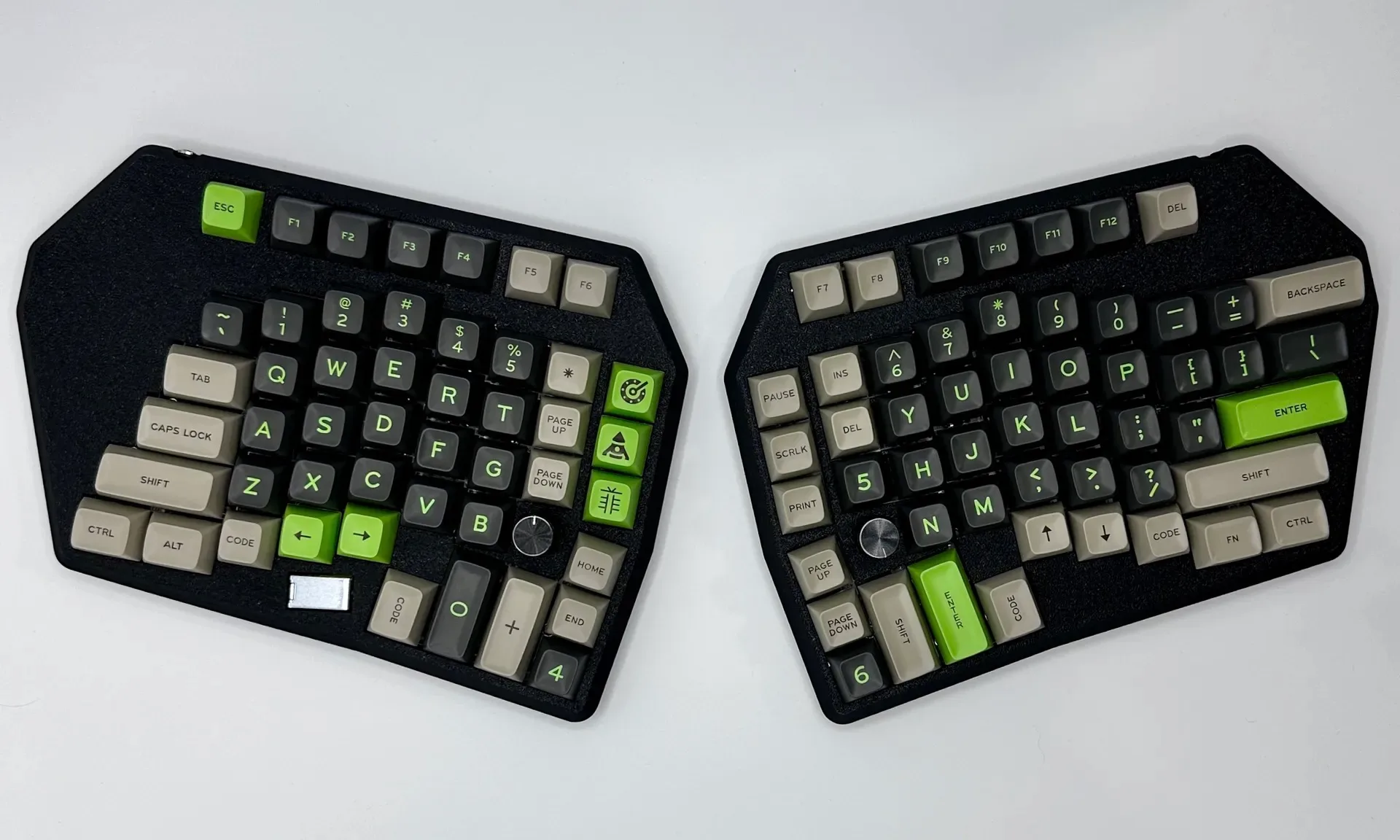

  • You can cover up the sandwich case with the 3d printed ‘monobody’ cover.
  • Spacers are intended to pass through the main pcb and screw onto the bottom plates, top plates, and MCU & Solenoid plates.
  • Having a standoff kit is helpful when assembling the keyplates. M2 Brass Standoff Kit
  • Acrylic key plates should only be used for MX switches. (The choc switches retention nubs only allow 1.5mm or 1.6mm plates, which aren’t recommended with acrylic).
